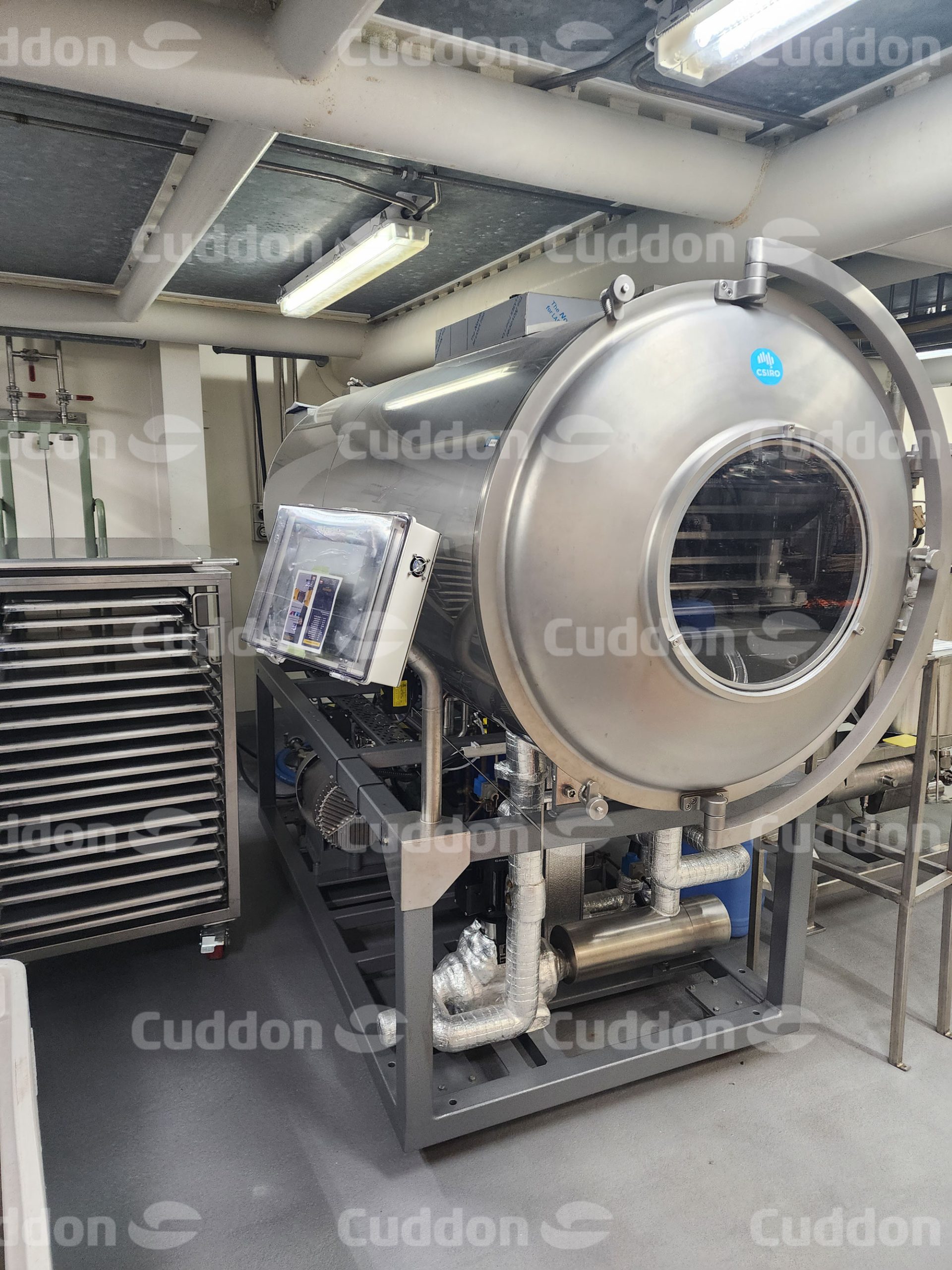

FD100GPC Freeze Dryer
Cuddon's FD100GPC general purpose freeze dry equipment has an 100kg ice capacity and 9m2 shelf area, and is capable of drying a variety of biological, pharmaceutical, nutritional and general food products.
| Cuddon FD100GPC Specification: | |
| PERFORMANCE | |
| Shelf capacity | 9.1m2 on 9 shelves |
| Performance ice test | 100kg ice sublimated in sub 24 hrs |
| Average yield of dry product per cycle | 20 kg based on 100 kg wet product @ 80% moisture |
| Potential heat energy recovery | 12 kW |
| Peak power requirement | 35kW, 50 or 60 Hz |
| Est. Energy consumption | 2.4 kWh / kg |
| Est. Typical operational power consumption (Dry) | 10 kW |
| SPECIFICATION | |
| Ice condenser capacity | 100kg |
| Ice condenser temperature | -27⁰C |
| Shelf temperature range | -25⁰C to 70⁰C |
| Shelf spacing (mm) | 35mm |
| Product tray material | Food grade anodised aluminium |
| Number of product trays | 18 per cycle (2 sets supplied) |
| Heating / cooling medium | Temper 55 |

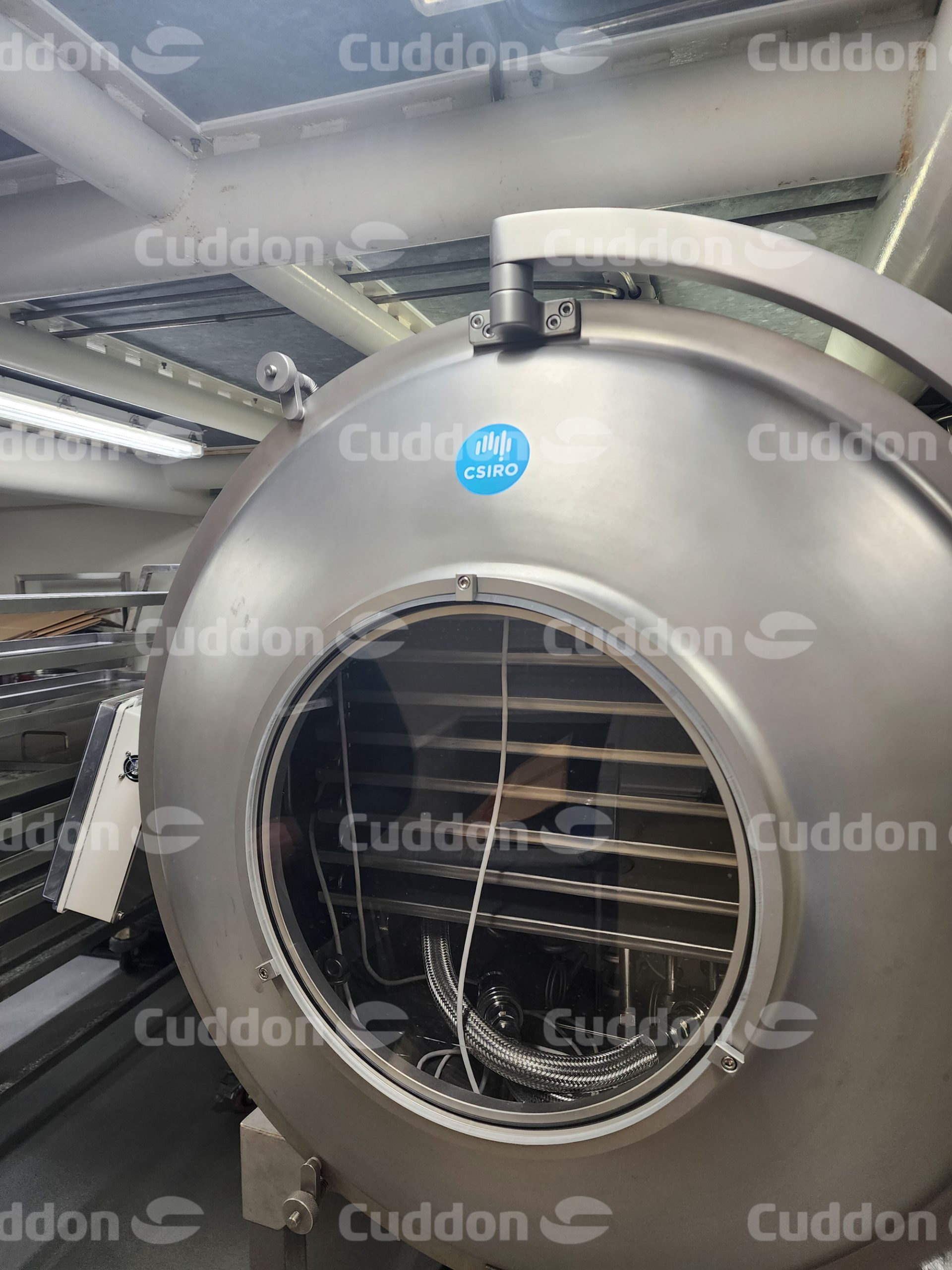

| Number of doors on product chamber | 1 |
| Plant equipment | Plant housed underneath chamber |
| DIMENSIONS | |
| Overall footprint | 3.44m (L) x 1.40m (W) x 1.94m (H) |
| Weight | 2,500 kg |
| Product trays size | 1025mm x 495mm x 20mm |
